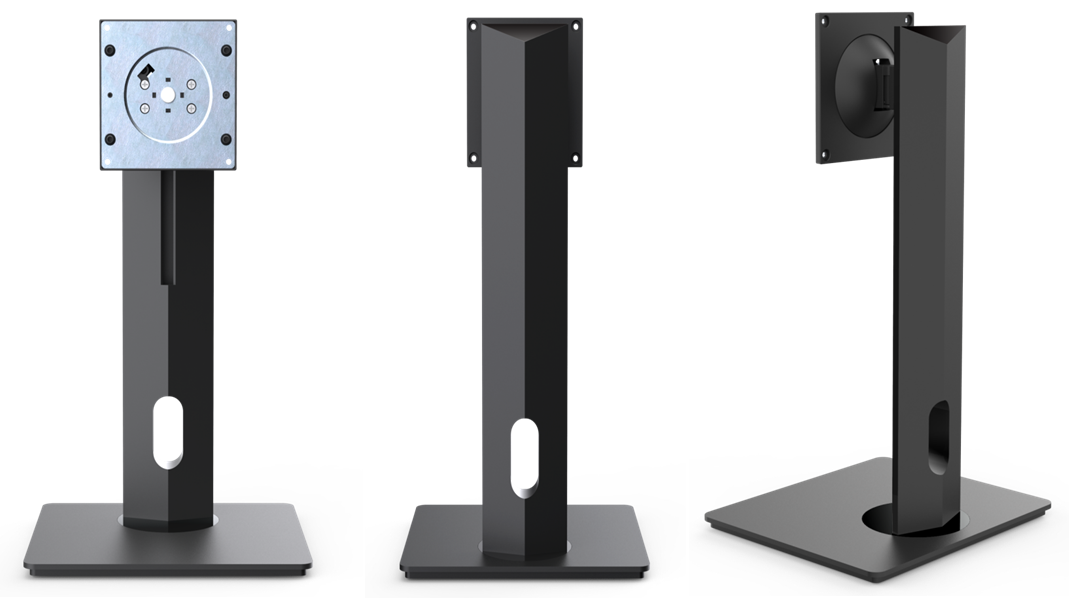

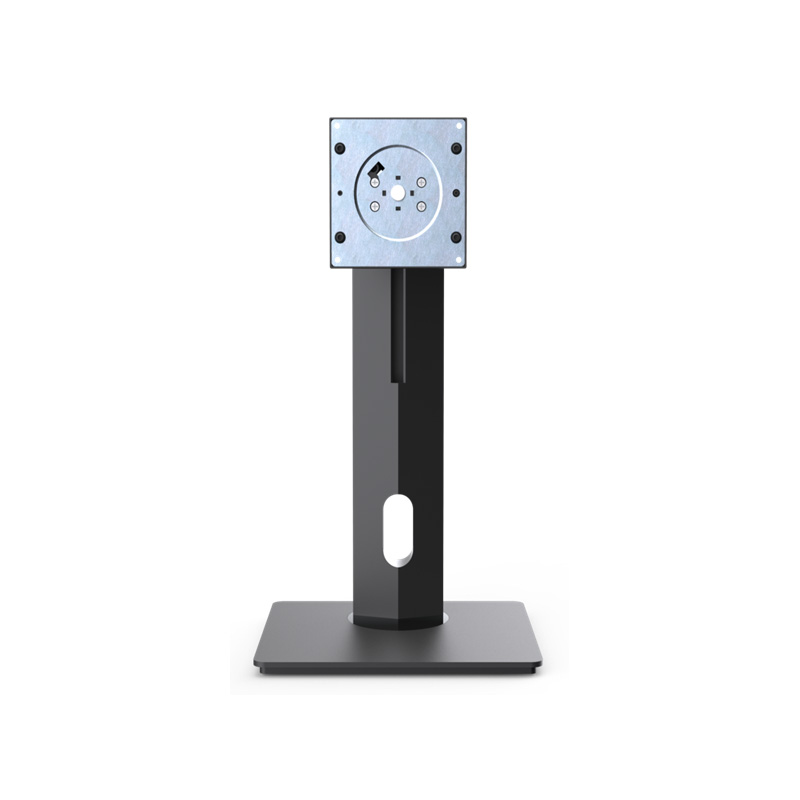

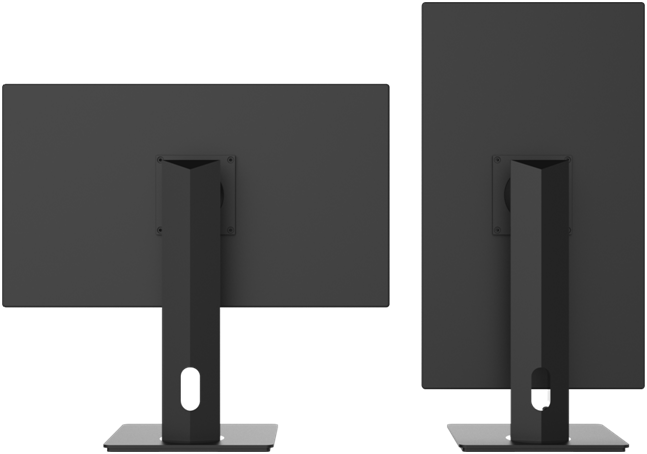

SB type lifting base

Model: SB type lifting base

Applicable: 15-24 "inch

Function: Rotate left and right, up and down, the screen can be 180 °

Height: 415MM

Maximum bearing weight: 7KG

Fixed hole position: 75 * 75MM 100 * 100MM

SB升降底座規格
產品參數

1·前傾後仰角度(Tit): -5° ~ +20°
2·左右旋轉角度(Swivel): -30° ~+30°
3·垂直旋轉角度(Pivot) :順時針0°~90°
4·整機升降高度(Lift): 110-130mm.

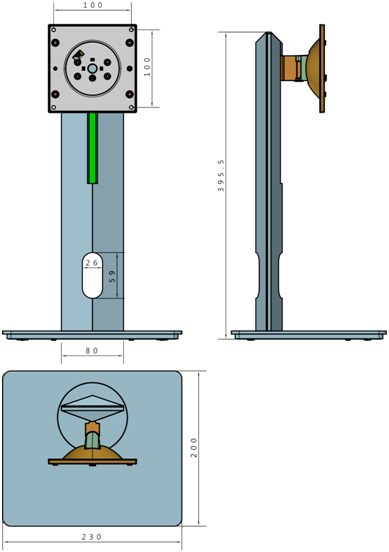

5·長寬高尺寸(mm): 230× 200X 395.5
6·安裝孔(Vesa) :100x100 (mm)
7·適配屏幕尺寸:24寸
8·適配屏幕重量:3.5kg
9·安裝方式:VESA螺絲固定



SB升降底座規格

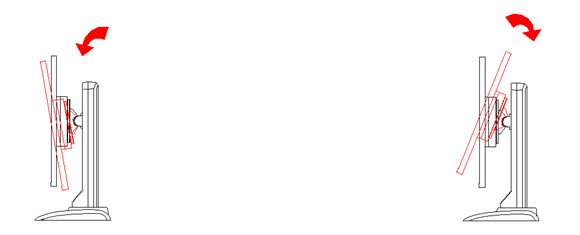

前後調整


前傾角度為10°        後傾角度為22°

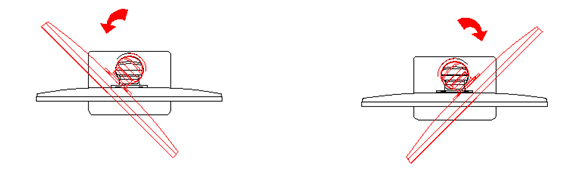

左右旋轉


向左旋轉45°              向右旋轉45°



垂直旋轉

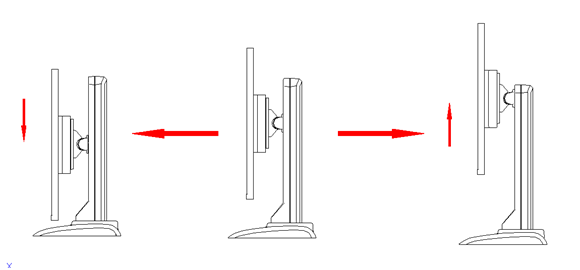

上下調整




上下行程調整130MM



SB升降底座規格

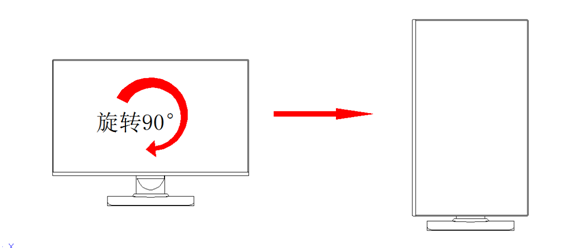

垂直旋轉90°


SB升降底座規格
