Applicable: 15-21.5 "inch
Function: rotate 45 ° from left to right, up and down
Fixed hole position: 75 * 75MM 100 * 100MM
Maximum bearing weight: 5KG
型號:ST01
產品參數

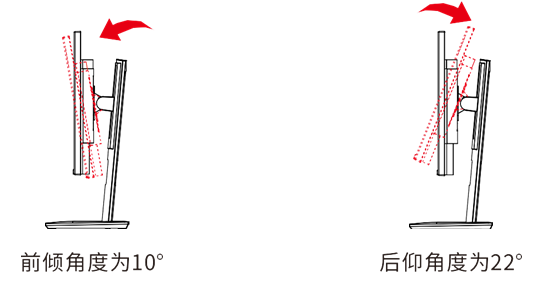

1.前傾後仰角度(Tit): -5°~ +22°

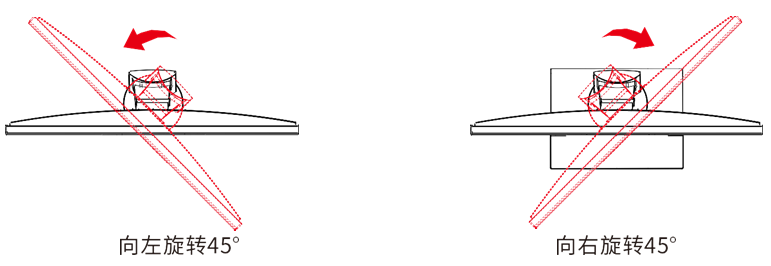

2.左右旋轉角度(Swivel): -45°~+45°

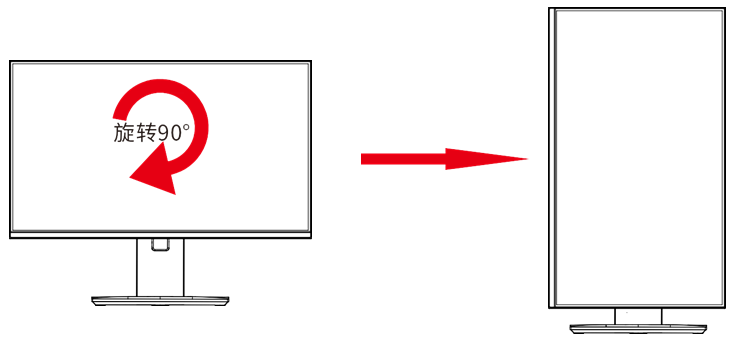

3.垂直旋轉角度(Pivot):順時針0°~90°
4.整機升降高度(Lift): 110-130mm.

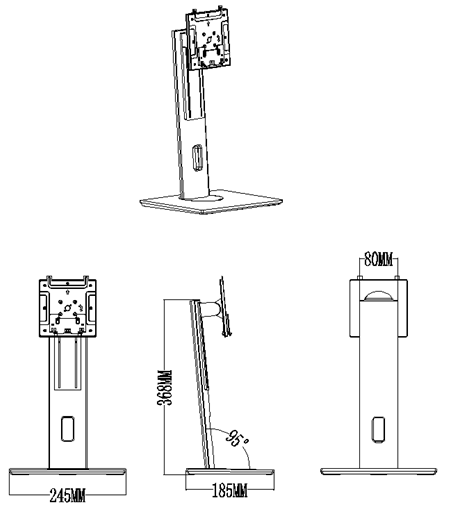

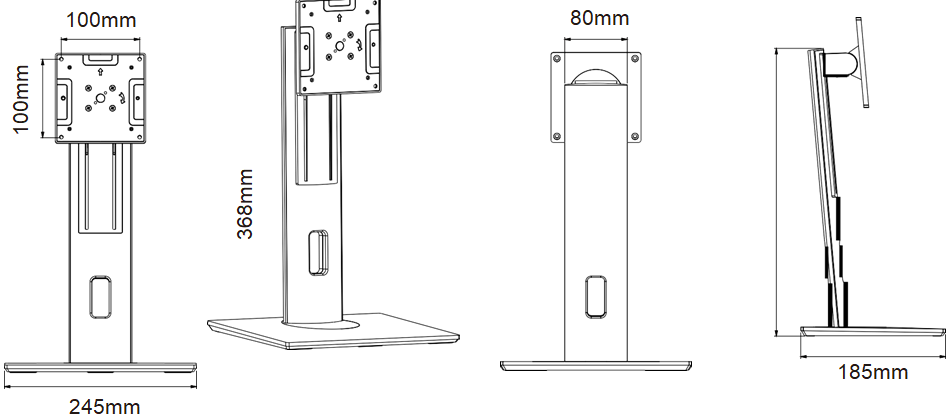

5.長寬高尺寸(mm): 245×185 X368
6.安裝孔(Vesa):100x100 75*75 (mm)
7.適配屏幕尺寸:15~21.5寸
8.適配屏幕重量:3~5.5kg
9.安裝方式:VESA螺絲固定
型號:AST01
前後調整
左右調整
垂直旋轉

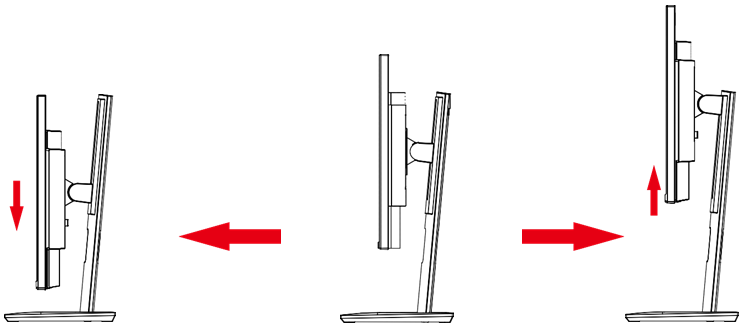

上下調整

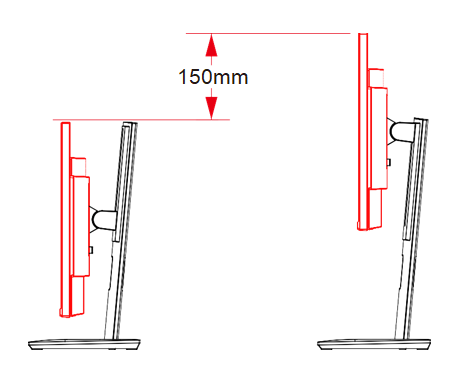

上下行程調整距離150mm
