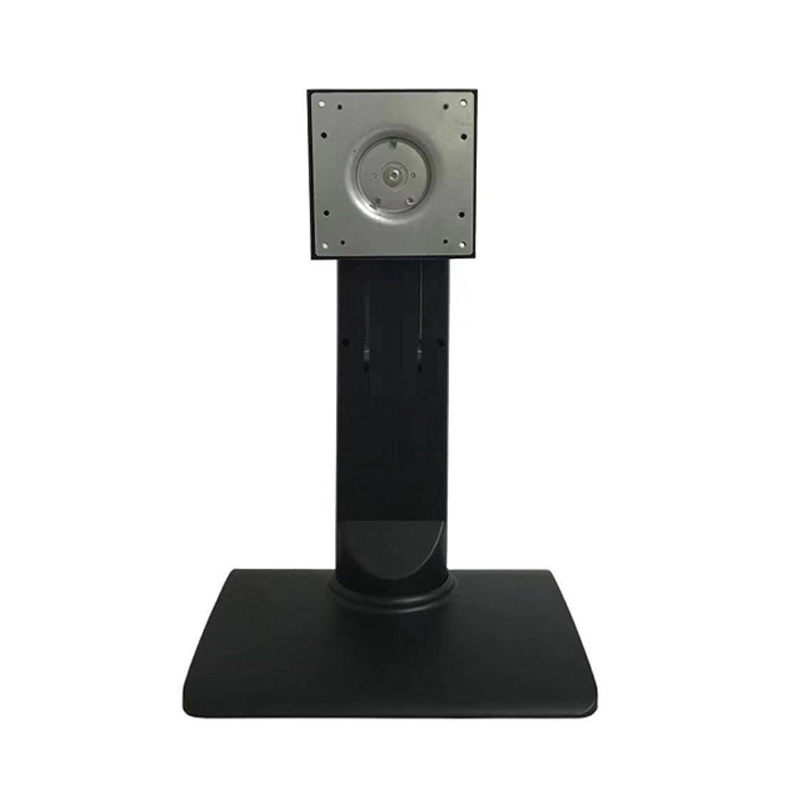

SE lifting base
Model: SE lifting base

Applicable: 15-32 "inch

Function: Rotate 90 ° from left to right, up and down, and the screen can be turned 180 °

Fixed hole position: 75 * 75MM 100 * 100MM


Maximum bearing weight: 7KG

SE升降底座規格
產品參數
1•前傾後仰角度(Tit): -5° ~ +22°
2左右旋轉角度(Swivel): -45° ~+45°
3垂直旋轉角度(Pivot):順時針0°~90°
4,整機升降高度(Lift): 110×150mm.

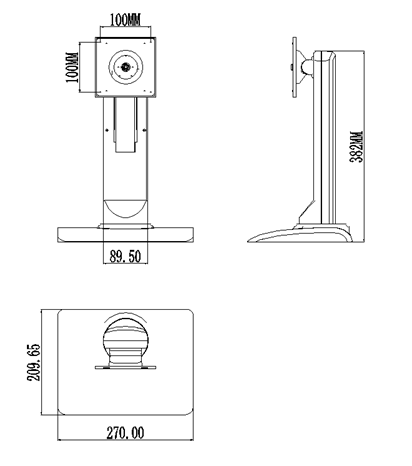

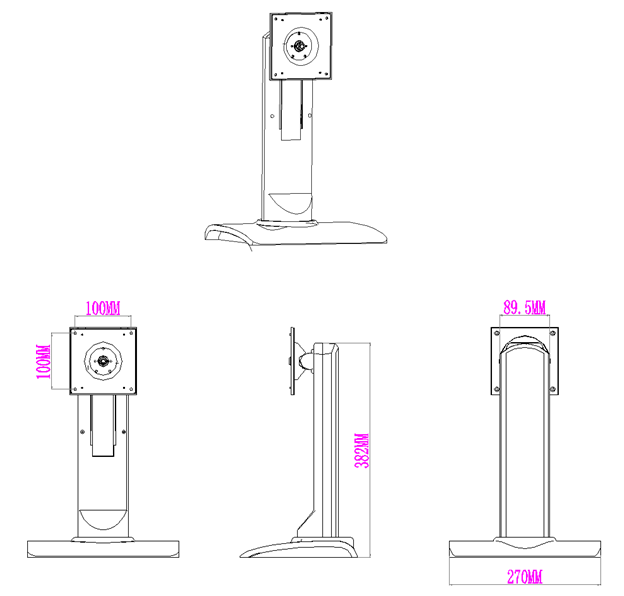

5.長寬高尺寸(mm): 270× 209X 382
6.安裝孔(Vesa):100x100 (mm)
7.適配屏幕尺寸:15.6-27寸
8適配屏幕重量:5/7KG左右
9.安裝方式:VESA螺絲固定


SE升降底座規格

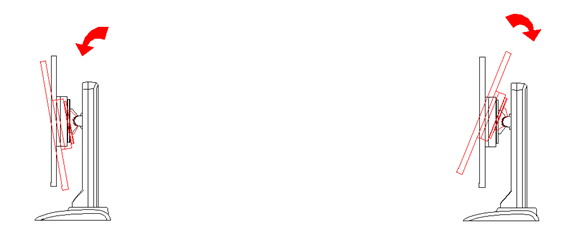

前後調整


前傾角度為10°       後傾角度為22°

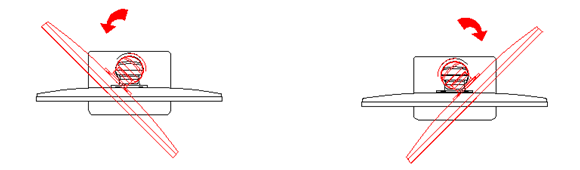

左右旋轉


向左旋轉45°              向右旋轉45°




垂直旋轉

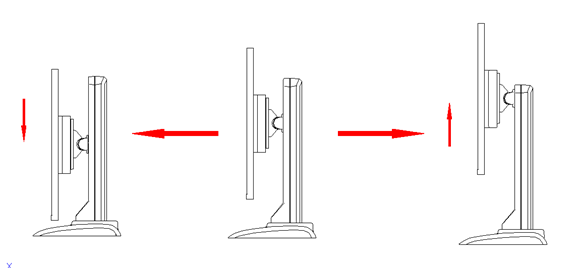

上下調整

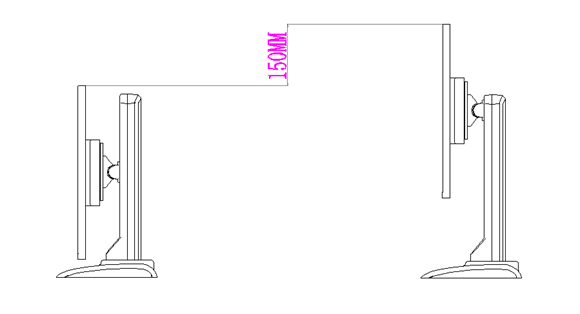

上下行程調整150MM







SE升降底座規格

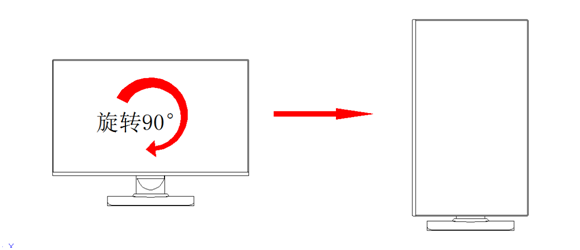

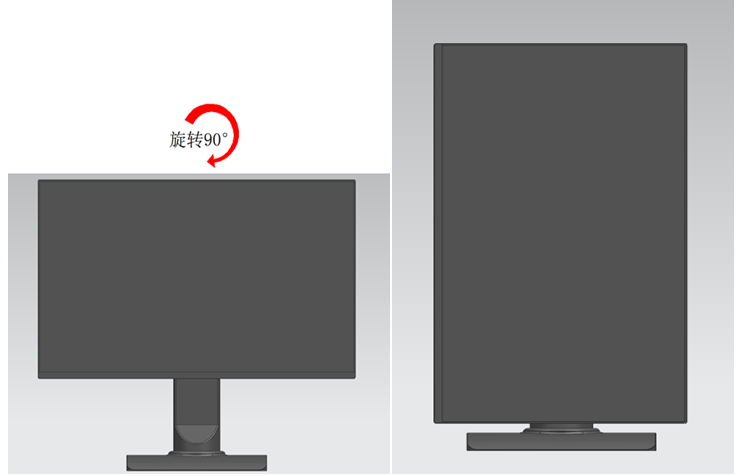

垂直旋轉90°


SE升降底座規格
